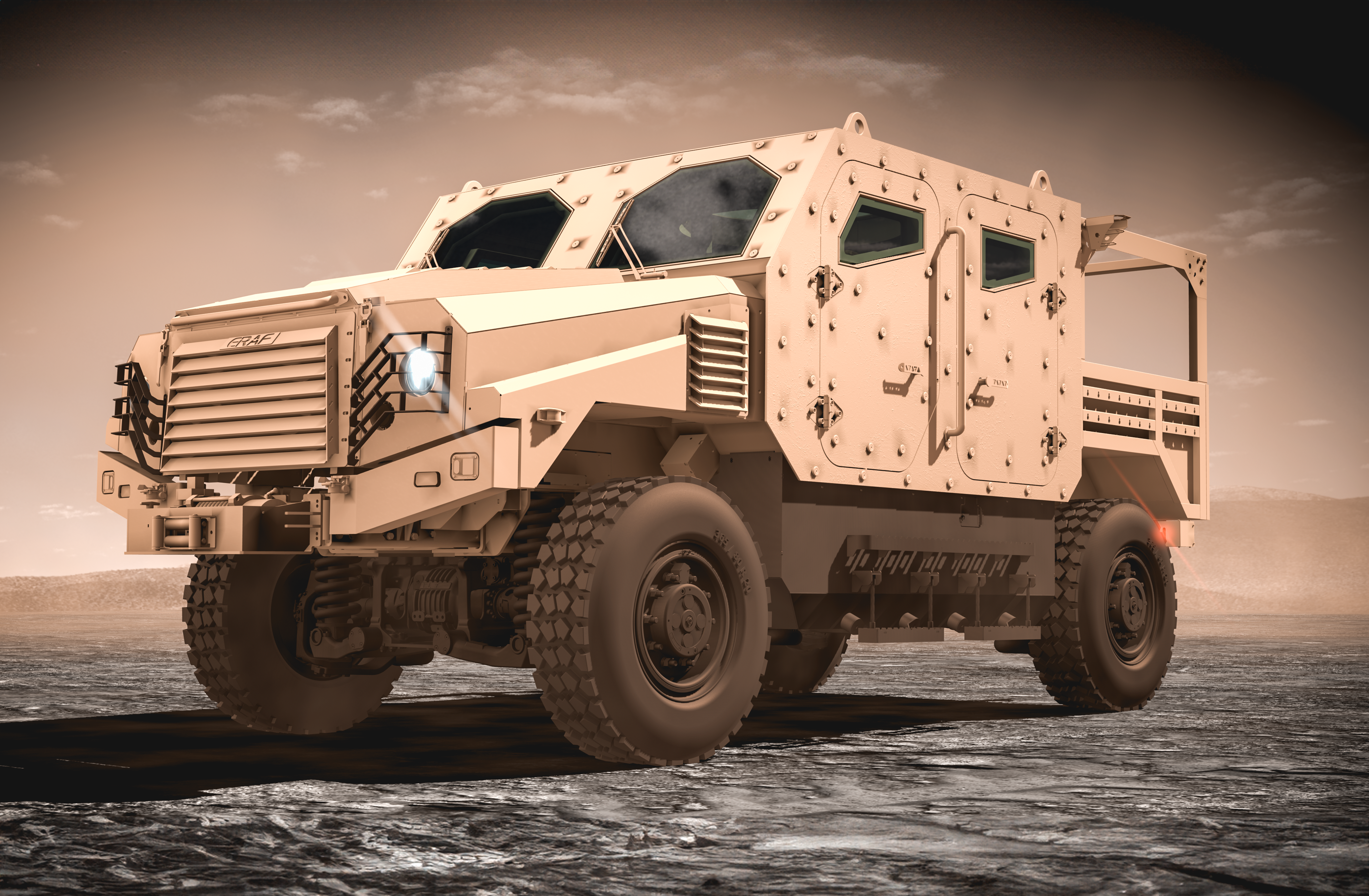

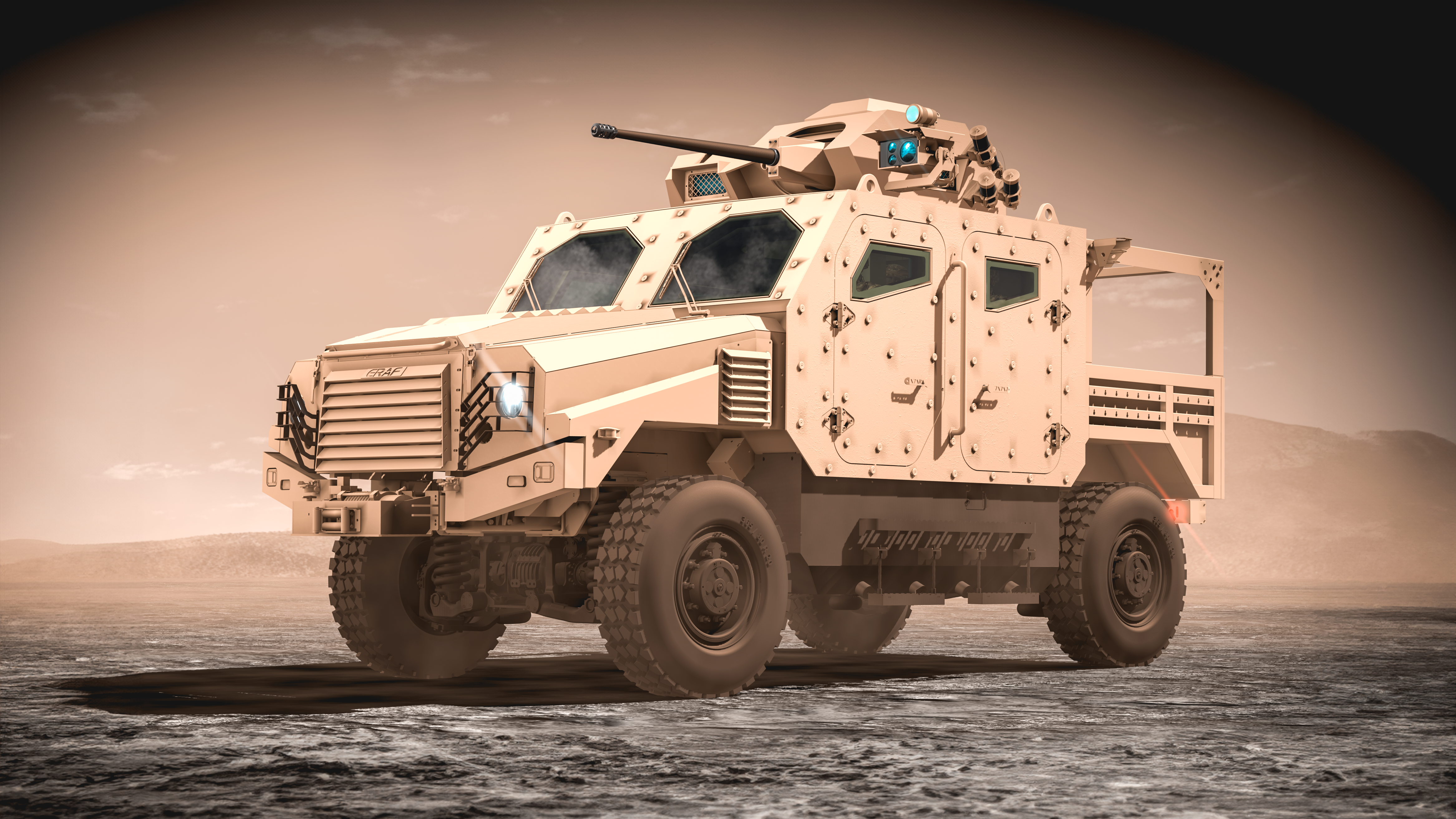

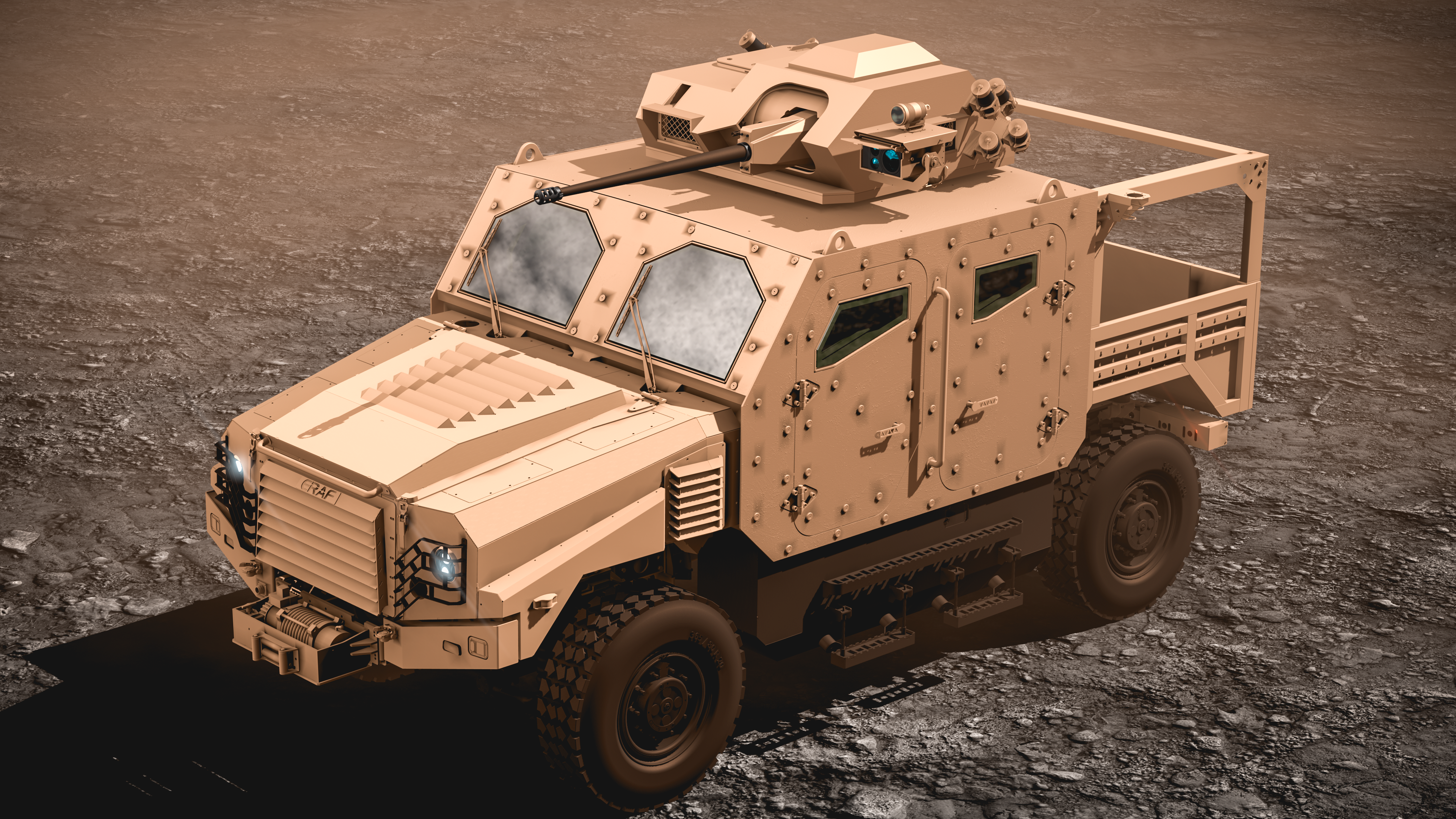

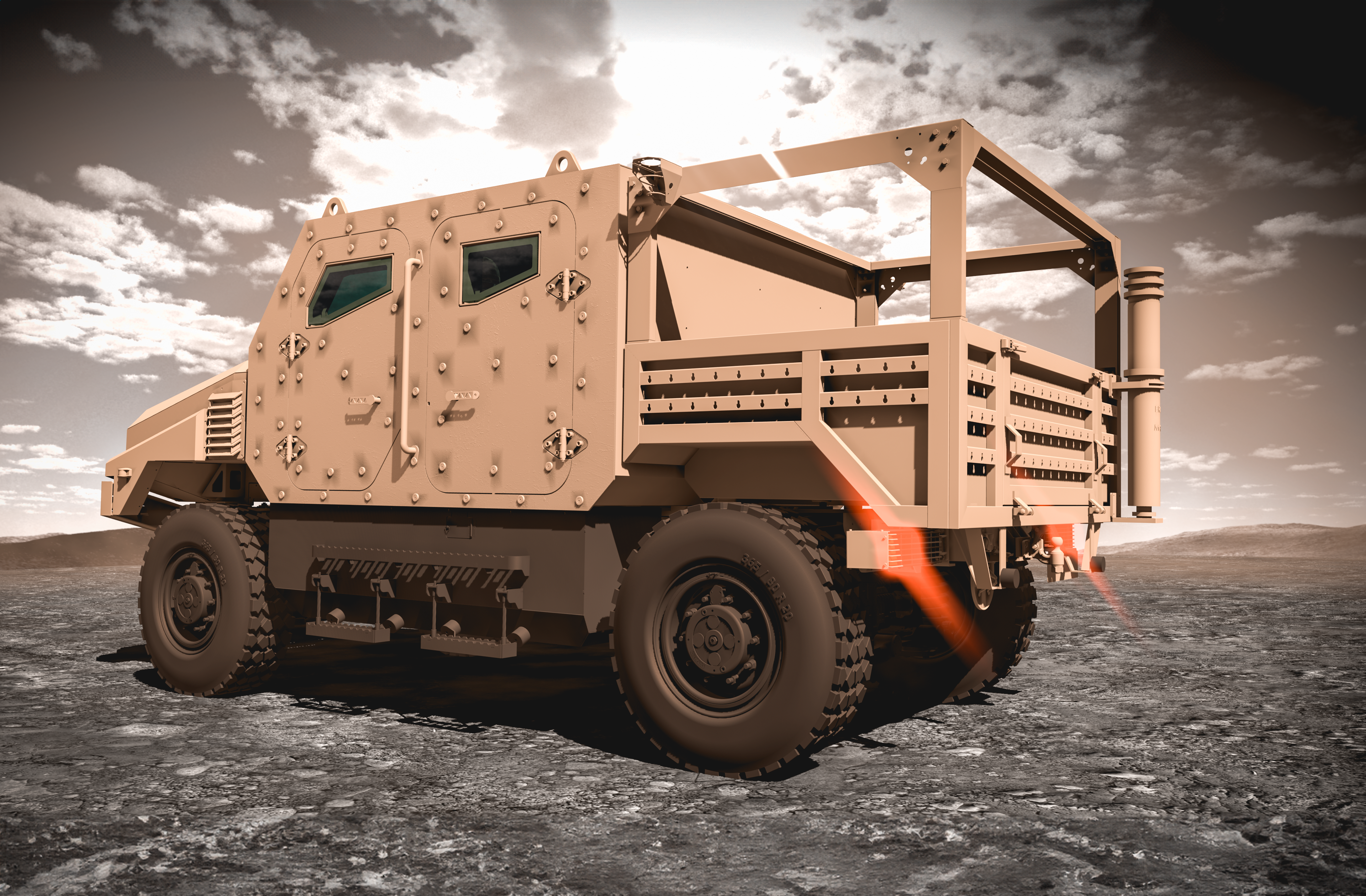

METRAS MPAV

The ERAF MPAV range showcases unparalleled versatility across a spectrum of missions. Whether deployed as a troop transport, rapid intervention and assault vehicle, enforcer of order, orchestrator of command-and-control operations, or a reliable ambulance, the ERAF MPAV proves its mettle in meeting diverse operational requirements.

Category ARMORED TRACKED AND WHEELED VEHICLE

Additional information
Attachment

Additional information

General Specification	– Model: METRAS 4×4 Multi-Purpose Armored Vehicle (MPAV) – Max Speed (On Road): 110 km/h – Range (On Road): 600 km – Gradeability: 60% – Side Slope: 30% – Protection Level: STANAG Level III – Gross Vehicle Mass (GVM): 14,000 kg – Dimensions: – Length: 6,050 mm – Width: 2,600 mm – Height: 2,700 mm
Engine	– Engine Model: Cummins ISB 285 HP, E3 – Displacement: 6.7 L, 6 Cylinders, In-Line – Max Power: 285 hp @ 2500 rpm – Max Torque: 970 Nm @ 1200 rpm
Transmission, Axles & Wheels	– Type: Allison Fully Automatic – Number of Speeds: 6 Forward, 1 Reverse – Transfer Case: SP Series, Range Selection (Low & High) – Make: Axletech – Front Axle Rating (AWR): 8,000 kg – Rear Axle Rating (AWR): 8,500 kg – Suspension (Front & Rear): Double Wishbone – Wheels – Tire Size: 365/80 R20 – Rim Size: 20-11 SDC
